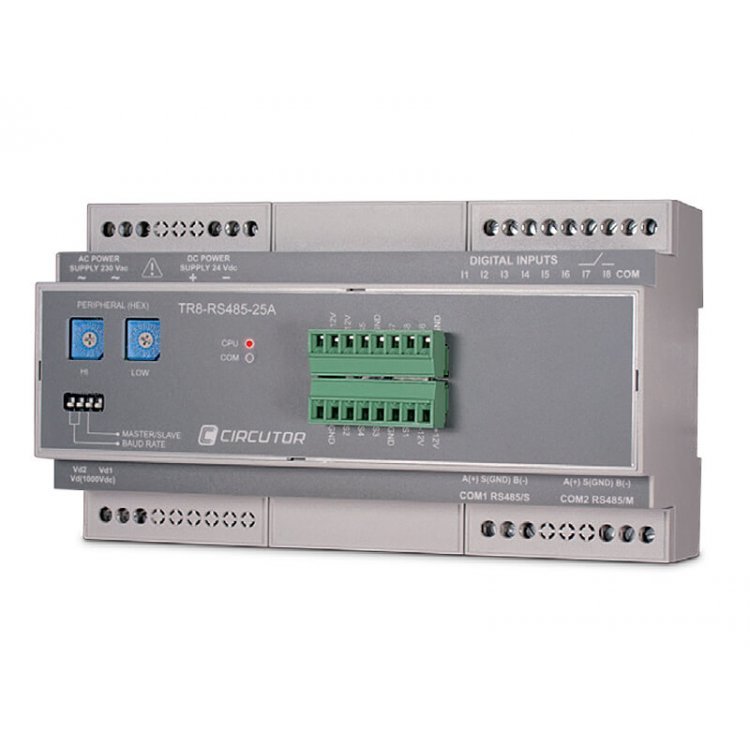

Circutor TR8-RS485-25 - Measurement device for up to 8 strings (E80000)
- Compact design (9-DIN Modules)
- String control, up to 8 strings for photovoltaic applications (8 digital inputs voltage-free)
- Modbus RTU connections - Up to 2 M/TR8-25x4 (8 channels)
- Voltage measurement of 1000V DC
- Multiple measurement modules available for up to 4 circuits
Product Details
The Circutor TR8 Multi-channel DC voltage and current analyser for solar applications. TR8 analysers have been specifically designed control strings in photovoltaic plants; it recognises the level of current generated in the different groups in real time, and therefore measures the current flowing through the external sensors
Measurement Modules: - M/TR-25A x2, 2 circuits 25A - M/TR-25A x4, 4 circuits 25A - M/TR-100A, 1 circuit Ø30mm - M/TR-100A-CC-28mm, 1 circuit 100A 1 circuit Ø28mm - M/TR-100A, 1 circuit 200A

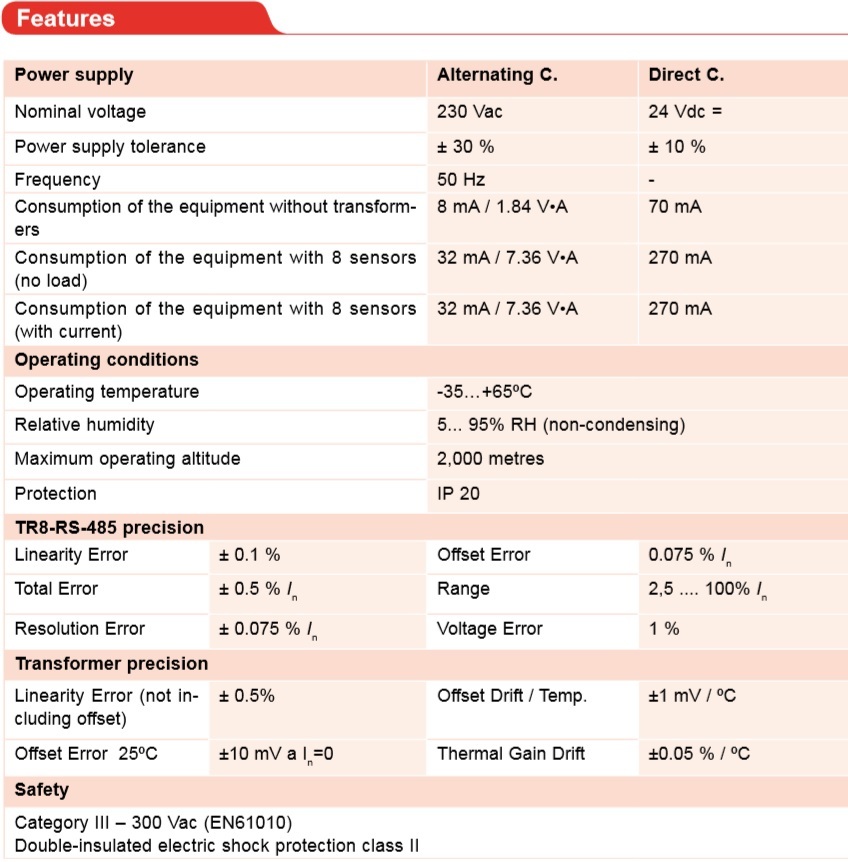

Product Specification
