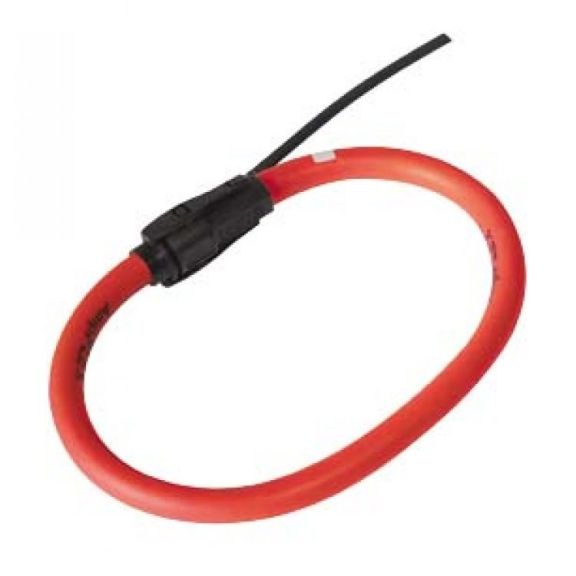

Chauvin Arnoux Amp-Flex Power Quality clamp A193-450/800 (P01120526B/P01120531B)

Product Details

Compatible with all PEL and Qualistar Power Quality Analysers (also avaliable at Camax) including the: CA8333 & CA8336, CA8345 and the PEL 103. The Chauvin Arnoux AmpFlex A193-450/800 Power Quality Clamp offers a clamping diameter of 20mm and a measurement range of 100mA to 10kA AC with 140mm/450mm clamping length (450) and 250mm/800mm (800)

With an IEC 61010 rating of 1000V CAT III / 600V CAT IV, the AmpFlex 193-450 is an ideal accessory for use with any Chauvin Arnoux Power Quality Analyser we supply.

Product Specification

A193-450 (Standard type)

• Measurement range: 100mA to 10kA AC
• Clamping length: Ø 140mm / 450mm
• IEC 61010: 1000V CAT III / 600V CAT IV

A193-800

• Measurement range: 100mA to 10kA AC
• Clamping length: Ø 250mm / 800mm
• IEC 61010: 1,000V CAT III / 600V CAT IV

Product Downloads

• Chauvin Arnoux Amp Flex leaflet (1.19MB)
