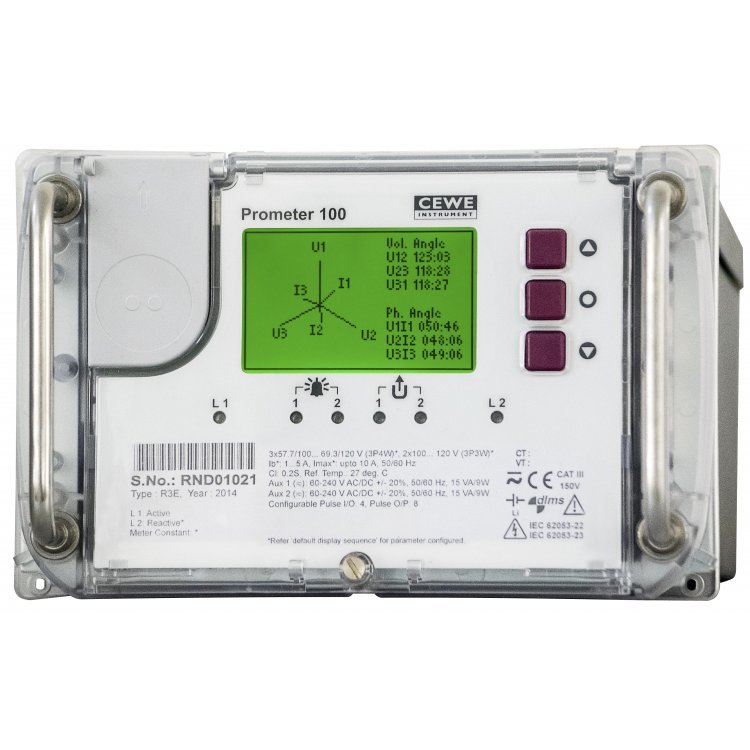

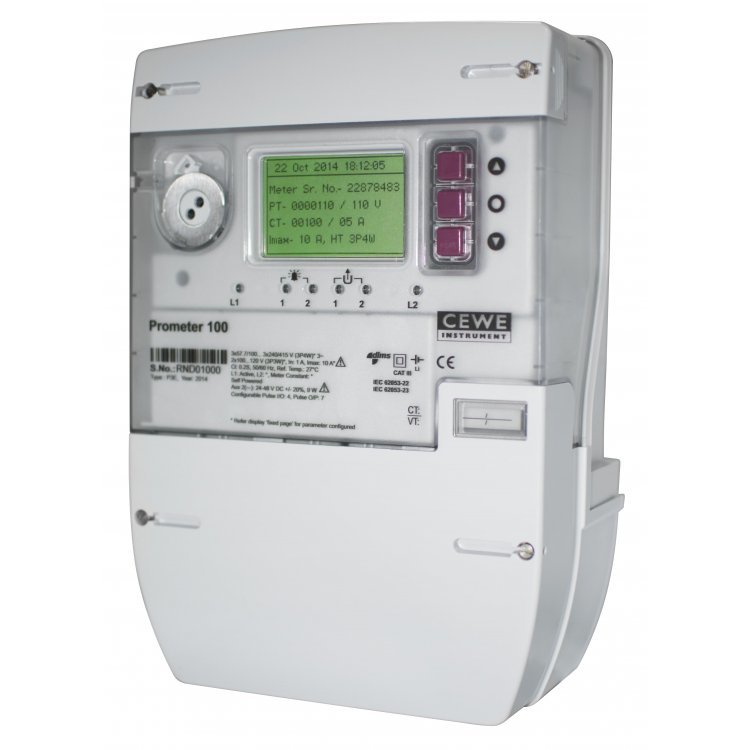

CEWE Prometer 100 Series

  • Four quadrant energy measurement
  • RS232 port compatible with meter-powered modem
  • Dual loggers for energy and instantaneous parameters
  • Simultaneous DLMS and Modbus communications through Ethernet port
  • Field replaceable hot pluggable communication modules
  • Remote configuration of communication ports
  • In built IEC61850 along with RS232/RS485 and Ethernet
  • ports
  • Transformer/Line loss adjustment (Copper and Iron
  • losses)
  • Field replaceable battery
  • Meter cover and terminal cover open detection
  • Wide-range dual auxiliary supply, with options for AC/DC and self-power (VT powered)





Enquire Now

Product Details

The Prometer 100 is a series of meters designed to precisely measure the energy transfer of transmission, generation, and distribution loads.

Flexible and modular communications allow for integration with AMR / AMI / SCADA systems, along with future upgrades to sub-station automation systems. With a wide range voltage, current, and auxiliary outputs, the unit is suitable for various applications.

Product Specification

Mechanics:

  • Dimensions: 292.7 x 201.5 X 105.2 mm (± 0.5 mm)
  • Weight: 2 kg

Electrical:

  • Connection type: HV3/HV4
  • Measurement voltage range: 57.7 V to 69.3 V (L-N), 100V to 120 V (L-L) ±30%
  • Measurement current range: 1-10 A (configurable)
  • Frequency: 50/60 Hz ±5%
  • Burden with auxiliary / self-powered (VT) Current circuit: < 0.1 VA/phase @ 1 A < 0.5 VA/phase @ 5 A
  • Voltage circuit in case of Aux power: < 0.1 VA/phase
  • Voltage circuit in case of internal/self power: <6 VA/phase
  • Accuracy Class: 0.2s or class 0.5s
  • Maximum overload voltage: 1.5 times of nominal voltage continuously
  • 2 times of nominal voltage for 0.5 second
  • Maximum overload current: 1.5 times of Imax continuously, 10 times Imax for 1 second, 20 times Imax for 0.5 second

Environmental:

  • Ingress protection: IP54
  • Operating temperature: -10 °C to + 60 °C
  • Limit range of operation: -25 °C to + 70 °C
  • Storage temperature: -40 °C to + 80 °C
  • Temperature coefficient: <0.3%/10 C for class 0.5
  • Temperature coefficient: <0.1%/10 C for class 0.2

Power supply:

  • Dual/single auxiliary supply
  • Range: 60-240 V AC/DC (±20%), burden: <10 VA
  • Optional range: 24-48 V DC (±20%), burden: <10 VA

Inputs and Outputs:

  • 8 fixed pulse outputs
  • 4 configurable as pulse inputs/outputs

Pulse outputs:

  • Type: volt-free, 100 mA
  • Voltage: 48-240 V AC/DC, option for 24-40 V DC,
  • Pulse width: 20 - 300 ms (for 50Hz); 16 - 300 ms (for 60Hz)

Configurable as pulse Input/Output:

  • Pulse output type: volt-free, 100mA
  • Pulse input type: optical isolator
  • Voltage: 24-240 V AC/DC

Indicator:

  • Six LEDs: 2 for metrology, 2 for pulse outputs, 2 for alarms/events
