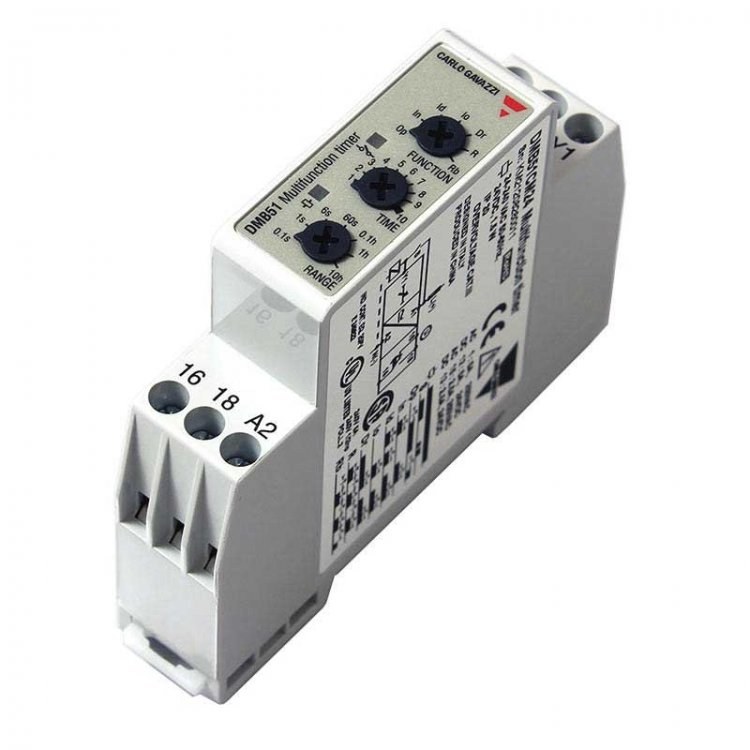

Carlo Gavazzi Multi-function Timer (DMB51CM24 )

Product Details

The DMB51 is a multi-voltage timer with 7 knob-selectable functions and 7 knob-selectable time ranges within 0.1s and 100h.

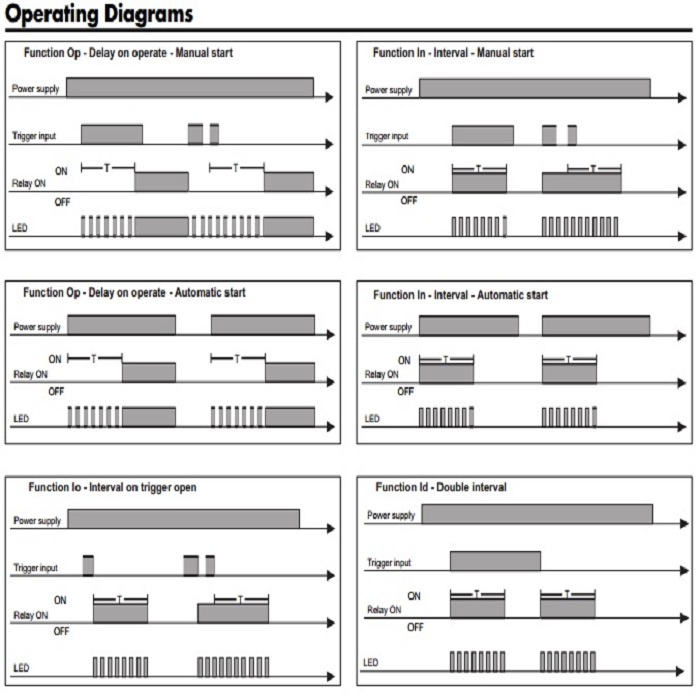

 Time Setting (Setting of function)

• Upper Knob:
• Op- delay on operate
•  In - interval
• Io - interval on trigger open
• Id - double interval
• Dr - delay on release
• R - symmetrical recycler (ON first)
• Rb - symmetrical recycler (OFF first)
• Center knob: Time setting on relative scale: 1 to 10 with respect to the chosen range
• Lower knob: Setting of time range

Product Specification

Supply Specifications

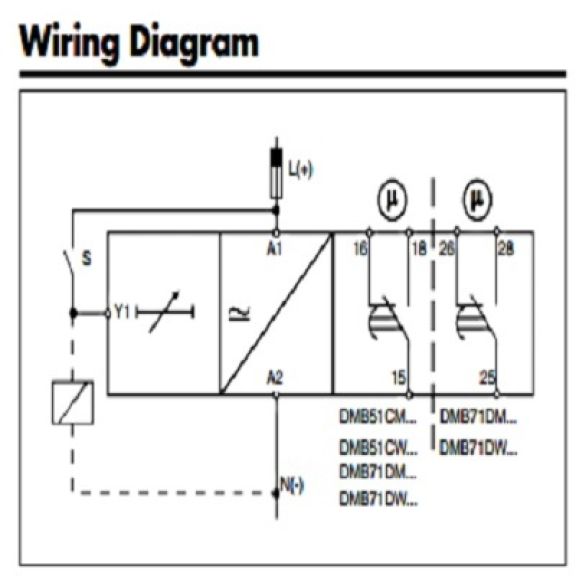

• Power supply: Rated operational voltage (IEC 60664, IEC 60038) through terminals: (DMB51C) A1, A2 M24: 24 VDC ± 15% and 24 to 240 VAC + 10% -15%, 45 to 65 Hz
• W24: 12 to 240 VDC + 10% -15% and 12 to 240 VAC
• Voltage interruption: ≤ 10 ms
• Rated operational power: (DMB51C) AC supply: 4 VA DC supply: 1.5 W

General Specification

• Housing Dimensions: (DMB51C) 17.5 (Width) x 81 (Height) x 67.2 mm (Depth)
• Power ON delay: ≤ 100 ms
• Indication for: Power supply ON LED, green
• Output relays: ON LED, yellow (flashing when timing)
• Environment (EN 60529)
• Degree of protection: IP 20
• Pollution degree: 2 (IEC 60664)
• Operating temperature: -20° to +60°C, R.H. < 95%
• Storage temperature: -30° to +80°C, R.H. < 95%
• EMC Electromagnetic Compatibility
• Immunity: According to EN 61000-6-2
• Emissions: According to EN 61000-6-3
• Weight: 75g
