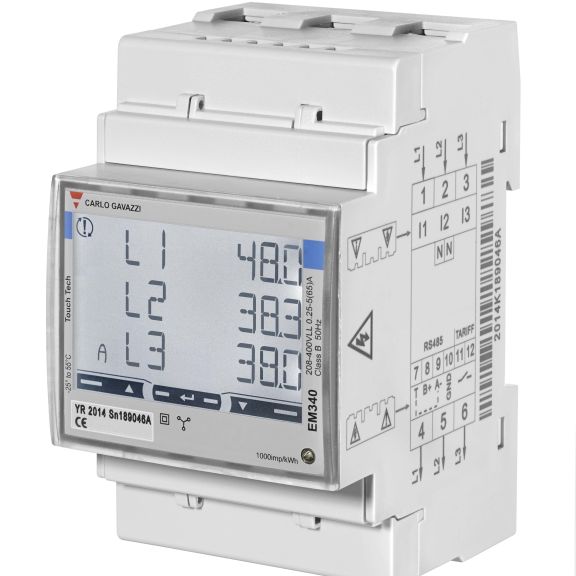

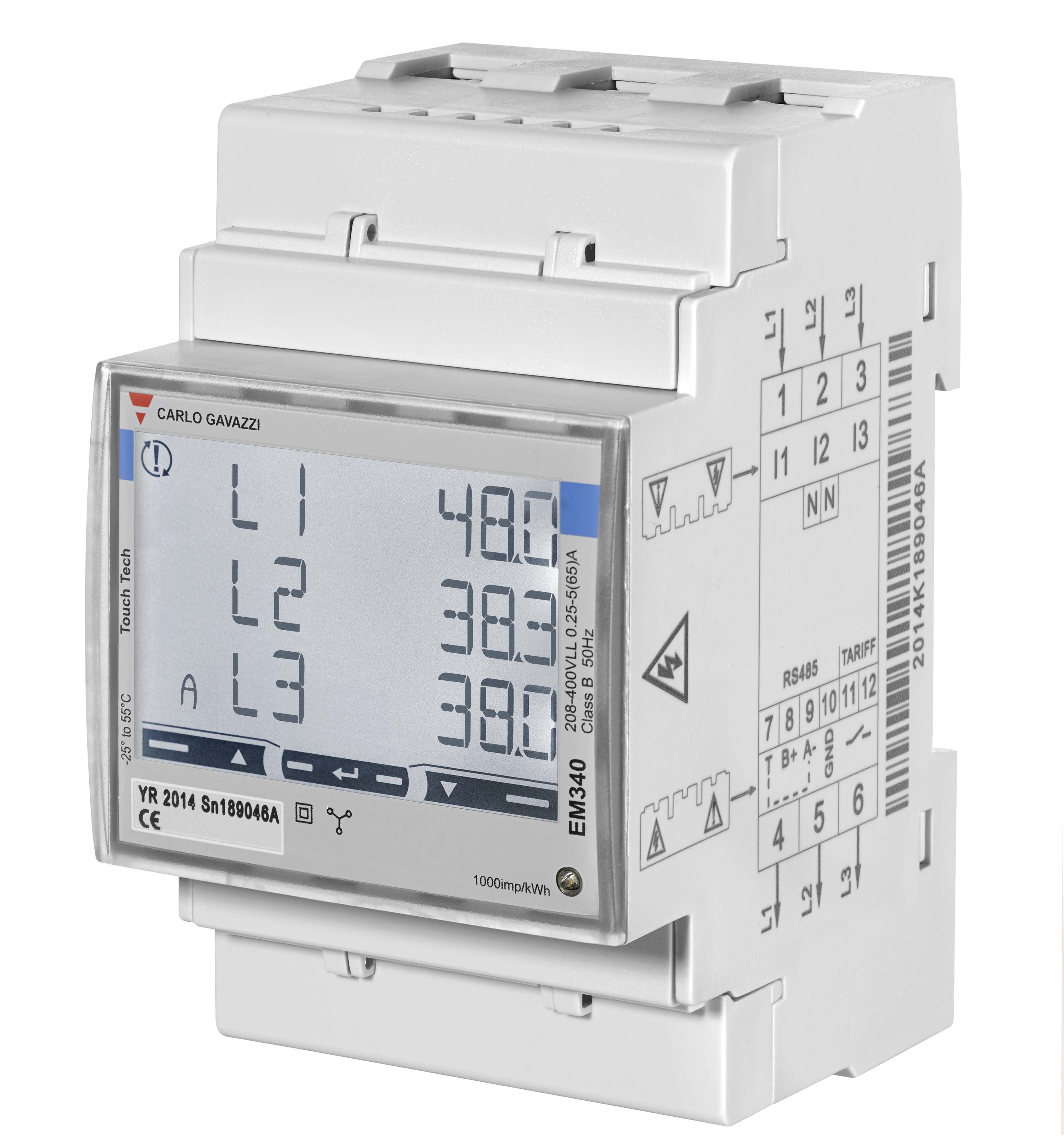

Carlo Gavazzi EM340 MID Energy Analyzer Series
- MID Certified
- DIN-Rail Mounted
- Display: 3x8DGT
- Current Input: 65A input
- Input Type: 3 Phase AC or 2 Phase, 3 Wire AC
- Output Digital Input DC output (Open Collector)
- Self-powered
- Parameters: kWh, kVArh, V, A, W, Wdmd, Wdmd max, VAr, PF, Hz
- I/O: 1 Digital input, 1 Pulse output (As standard)
- Communications: Modbus RS485 port (S1 Model) and M-Bus port (M1)
Product Details
Carlo Gavazzi's new EM300 Range offers a cost effective, compact and MID certified 3-phase metering solution. The meters are ideal for remote monitoring with 1 digital input,1 Pulse output and with the option of either M-Bus or Modbus RTU to communicate with PLCs.
EM340 Models
- 1 Pulse I/O - EM340DINAV23XO1PFB
- M-Bus - EM340DINAV23XM1PFB
- Modbus RTU - EM340DINAV23XS1PFB
Product Specification
- Current Type: 3 Phase load, direct connection
- Current Range: 5 (65)A
- Dimensions: 54mm x 90mm x 63mm (WxHxD)
- Housing: DIN-Rail (IP51)
- Nominal Voltage: 208 to 400V LL AC
- Energy Accuracy: Class 1
- I/O: 1 Digital input, 1 Pulse output (As standard)
- Communications: Modbus RTU port (S1 Model) and M-Bus port (M1)
