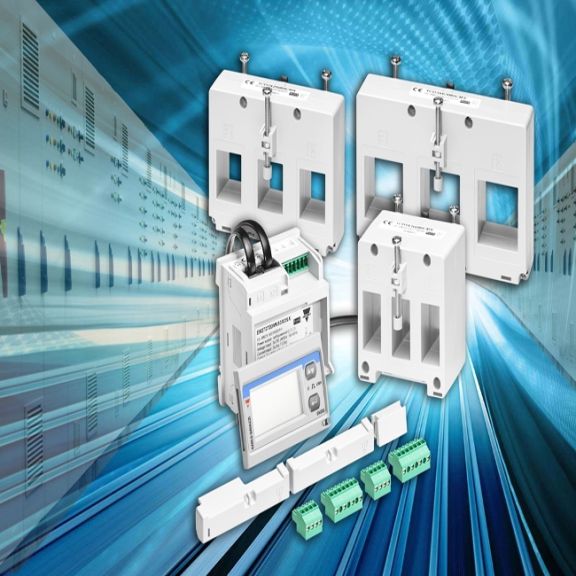

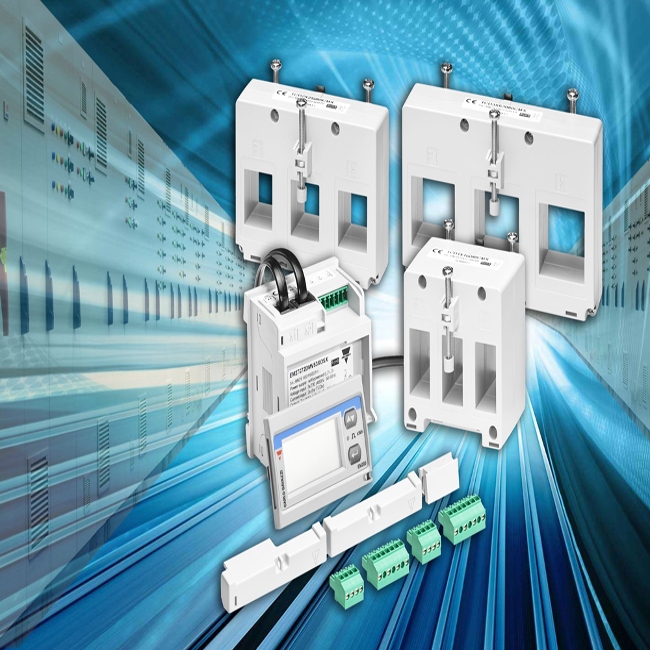

Carlo Gavazzi EM270 Energy Analyser with 3-Phase Block CT's (EM270-72D MV5.3.X.OS.X)
EM270's can be supplied with TCDX1, TCDX2 and TCXD3 3-phase Current Transformer Sets (Only compatible with EM270)
- Accuracy: Class 1 kWh/Class 2 kVArh
- Dimensions: DIN 72 x 72mm
- Up to 2 Three Phase loads
- Voltage: 230V L-N/400 V L-L or 120V L-N/230V L-L

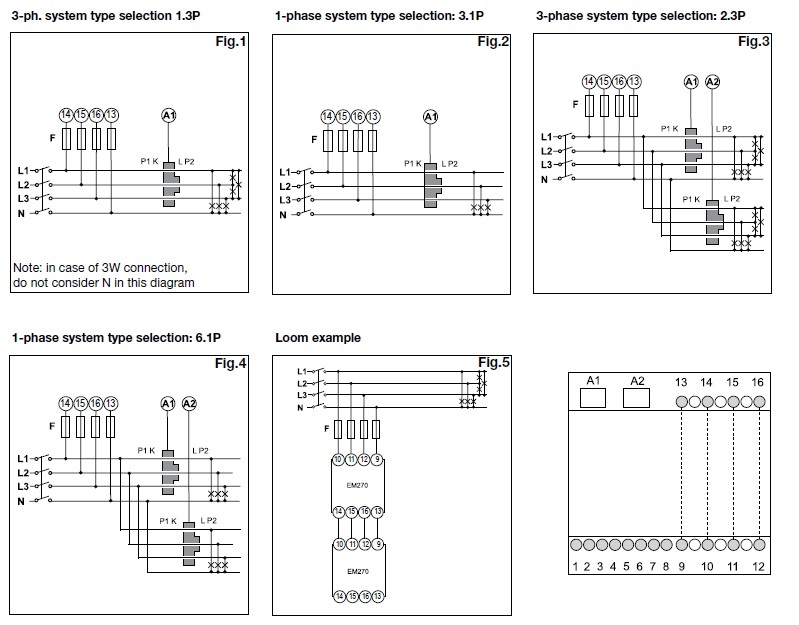

- Polyphase connection: 3ph/3W, 3ph4W or 1ph/2W
- Dual Pulse outputs
- RS485 Serial port
Product Details

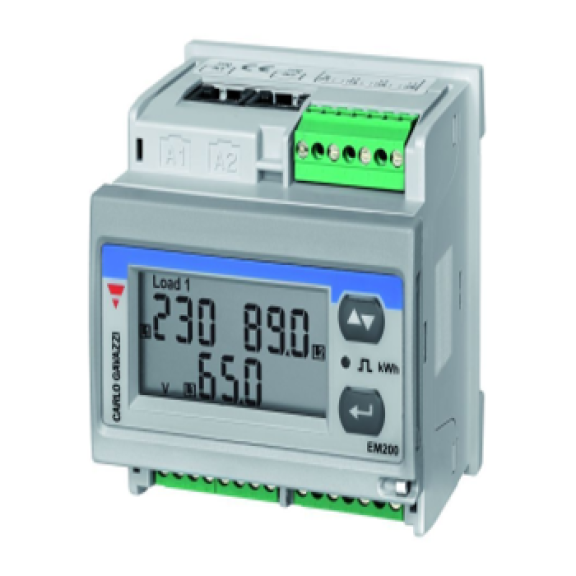

The EM270 is a Dual three-phase energy meter with a built-in configuration key-pad and LCD data display. Up to 2 three-phase loads or up to six single-phase loads can be measured at one time.
EM270's are manufactured to suit a particular set-of CT's (Unique to the meter); each model has a different CT-set (output and internal diameter) and must be specified to the circuit.
EM270 3 phase TCD1X CT Block models (Aperture: 15.5 x 25mm)
- TCD 1X160A 80CM X(3 Phase Current Transformer, 0-160A, 80cm cable)
- TCD 1X160A 140CM X(3 Phase Current Transformer, 0-160A, 140cm cable)
- TCD 1X160A 200CM X(3 Phase Current Transformer, 0-160A, 200cm cable)
- TCD 1X160A 200CM X(3 Phase Current Transformer, 0-160A, 300cm cable)
EM270 3 phase TCD2X CT Block models (Aperture: 21 x 25mm)
- TCD 2X250A 80CM X(3 Phase Current Transformer, 0-250A, 80cm cable)
- TCD 2X250A 140CM X(3 Phase Current Transformer, 0-250A, 140cm cable)
- TCD 2X250A 200CM X(3 Phase Current Transformer, 0-250A, 200cm cable)
- TCD 2X250A 300CM X(3 Phase Current Transformer, 0-250A, 300cm cable)
EM270 3 phase TCD3X CT Block models (Aperture: 31 x 31mm)
- TCD 3X630A 80CM X(3 Phase Current Transformer, 0-630A, 80cm cable)
- TCD 3X630A 140CM X(3 Phase Current Transformer, 0-630A, 140cm cable)
- TCD 3X630A 200CM X(3 Phase Current Transformer, 0-630A, 200cm cable)
- TCD 3X630A 300CM X(3 Phase Current Transformer, 0-630A, 300cm cable)
Product Specification
