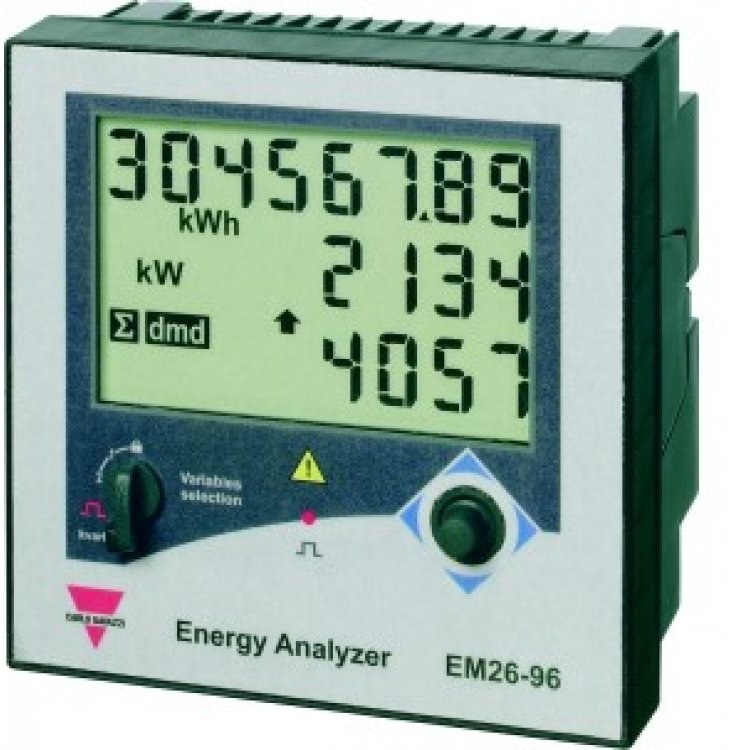

Carlo Gavazzi EM26 5A CT Connected MID Energy meter Series

Accuracy: Class 1
Back-lit LDC Screen
Housing: 96 x 96mm
Four Quadrant measuring
Pulse Output as standard

Enquire Now

Product Details

The EM26 is a 5A Current Transformer connected panel MID certified meter with an Accuracy of Class 1.

Pulse output is an option available with this meter allowing data recordings to be viewed remotely with alarms and Active and Reactive Energy parameters.

EM26 comes with LCD back-lit screen and joystick for interactive displays of Active and Reactive energy metering and for cost allocation.

The meter has the option of digital outputs that can be used: the Pulse proportional to the Active and Reactive energy being measured or for alarm outputs, or for remote control.

EM26 MID models:

Carlo Gavazzi EM26 5A CT connected MID certified Meter with Pulse Output (EM26-96.AV5.3.H.01.X.X.PFB)
Carlo Gavazzi EM26 5A CT connected MID energy Meter with Pulse & Modbus output (AV.5.3.H.01.S1.PFB)
Carlo Gavazzi EM26 5A CT connected MID certified Meter with 3 Pulse Output (EM26-96.AV.5.3.H.03.X.X.PFB)
Carlo Gavazzi EM26 5A CT connected MID certified Meter with 3 Pulse and Modbus Output (AV.5.3.H.03.S1.PFB)

Product Specification

MID Certified
1 digital output for pulse or for alarm
Dimensions: 96x96mm
Protection degree (front): IP50
Application adaptable display and programming procedure (Easy program function)
Easy connections management
Class 1 (kWh) according to EN62953-21
Class B (kWh) according to EN50470-3
Class 2 (kvarh) according to EN62053-23
Accuracy +0.5% RDG (current/voltage)
Dual colour backlight: no backlight, blue or white (selectable)
Energy analyser
Instantaneous variables readout: 4 DGT
Energies/gas/water readout: 7+1 DGT
System variables: VLL, VLN, Admd, VA, VAdmd, VAdmd max, W, Wdmd, Wdmd max, VAr, PF, Hz, Phase-sequence
Single phase variables: VLL, VLN, A, VA, W, var, PF
Energy measurements: total or partial kWh and kVArh or based on 4 different tariffs; single phase measurements
Hour counter (6+2 DGT)
Harmonic analysis (FFT) up to 15th harmonic (current/voltage)
TRMS measurements of distorted sine waves (voltages/currents)
Universal power supply: 18 to 60VAC/DC, 90 to 260AC/VDC
3 digital inputs for tariff selection, DMD synch or gas/water (hot/cold) and remote heating metering
