Carlo Gavazzi EM112 MID Single Phase Energy Analyzer Series

Product Details

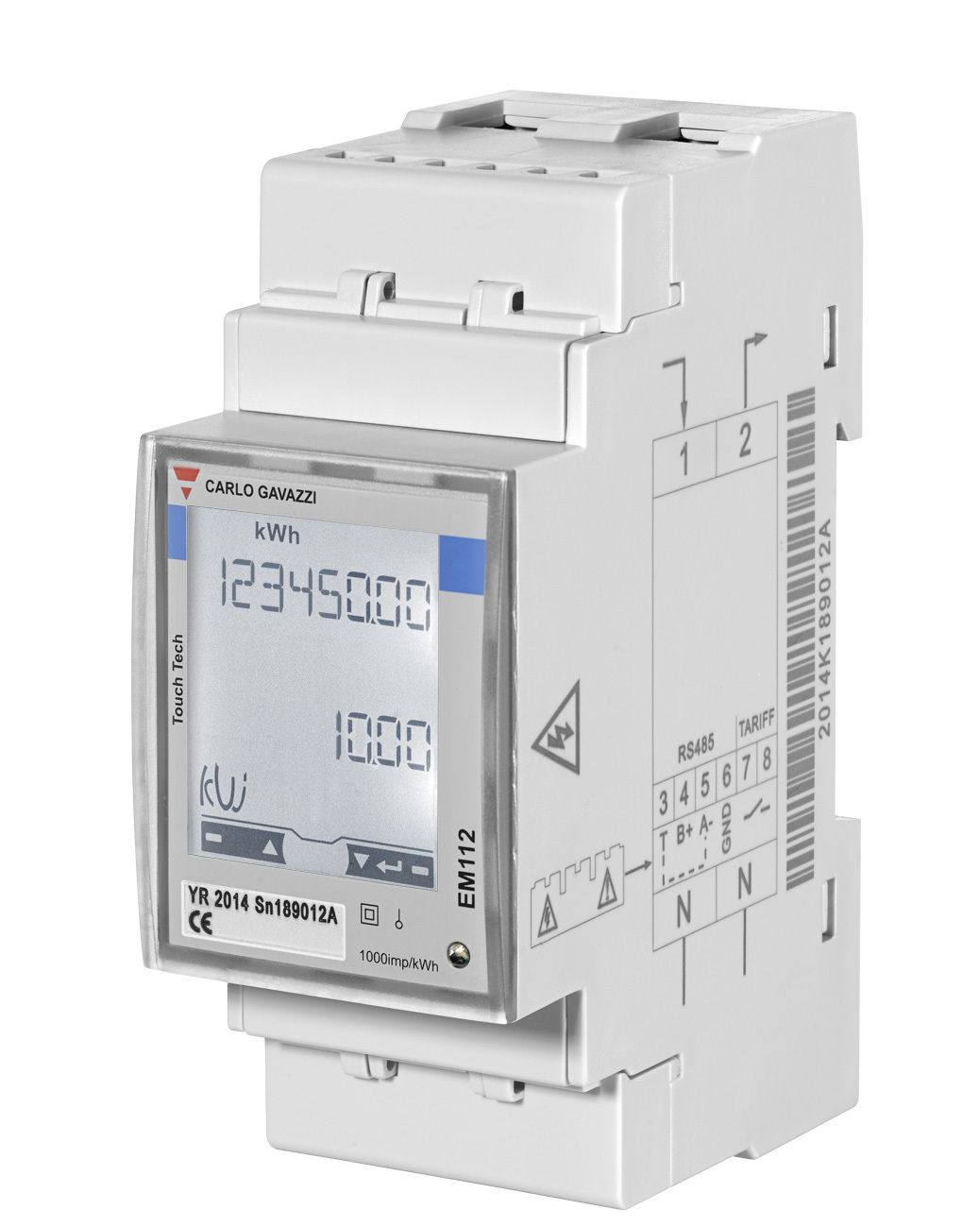

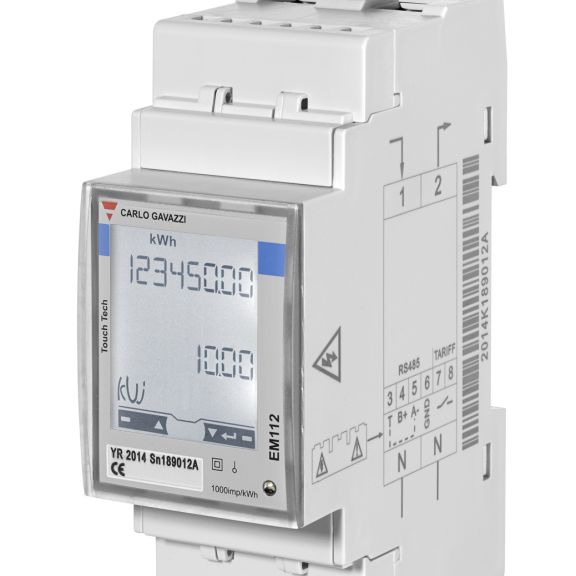

Camax can supply the new Carlo Gavazzi EM112 Single Phase MID Energy Meter ex-stock!

The meter range is suitable for billing applications for small loads (up to 100A) with two tariff options for users. Housed in 2-DIN module fashion, the meter's small and compact design makes it ideal for quick installation.

Energy parameters: kWh, kVARh (imported/exported); kWh + 2 tariffs

System parameters: kW, kVAr, V, A, PF, Hz, kW Demand, kW demand peak

EM112 MID models:

• EM112 Single Phase Energy Analyzer with a Pulsed output (AV0.1.X.01.PFB)
• EM112 Single Phase Energy Analyzer with Modbus RS485 (AV0.1.X.S1.PFB)

Product Specification

Rated inputs

·             Current Type: 1-Phase loads, Direct Connection, 2-Wire

·            Current Range: 5 (100A)

·             Nominal Voltage: 230V LN AC (AV0) or 120V LN AC (AV1)

Accuracy

·             Active Energy: Class 1 according to EN62053-21 and MID Annex MI-003 Class B (kWh) according to EN50470-3)

·             Reactive Energy: Class 2 according to EN62053-23

·             Start-up current: 40mA (AV0, AV1) positive or negative

·             Start-up voltage: 84V LN (AV1), 161V LN (AV0)

Sampling rate

·             4096 samples/s @ 50Hz

Display and touch key-pad

·             Type: Back-lit LDC, 3 rows by 8-digit each, h 5mm

·             Read-out: Energy - 8 Digit. Variables: 4

Max. and Min Indication

·             Energies: Max. 99.999.999 - Min.0.01

·             Variables:9999 - Min. 0.001

LED

·             Pulses: 1000imp kWh

Current overloads

·             Continuous: 100A @ 50Hz

·             For 500ms: 2Un

Voltage Overloads

·             Continuous: 1.2 Un

·             For 500ms: 2Un

Power Supply

·             Self power supply -30% + 20% of rated input Voltage

Output

·             Pulse output (opto-mosfet)

·             RS485 Modbus output (S1 Model)

Product Downloads

• Carlo Gavazzi EM112 Datasheet (0.42MB)
