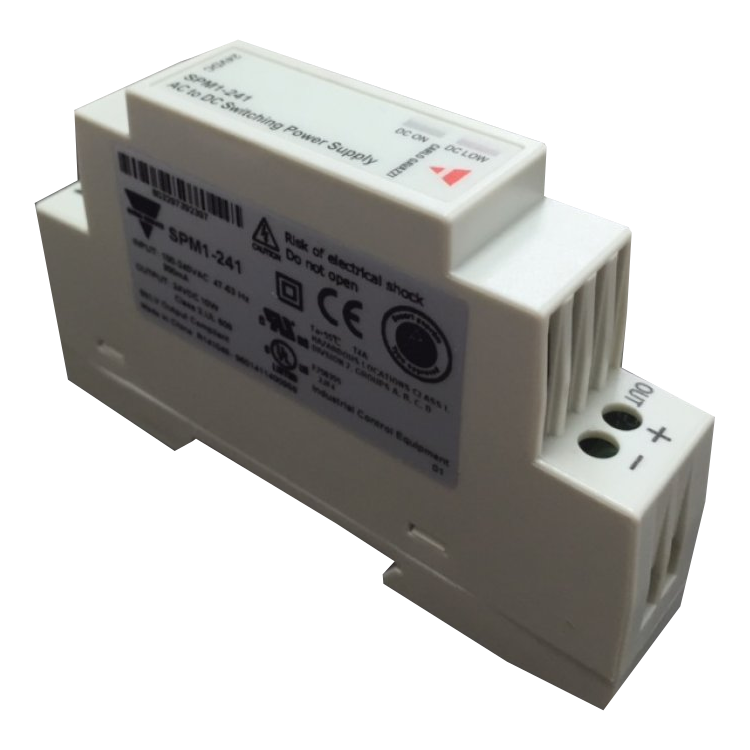

Carlo Gavazzi DIN Switching Power Supply (SPM1-241)

Product Details

SPM Modular switching power supplies are specifically designed in order to satisfy both the Automation and the Building automation application requirements.

The single DIN module PS is capable of up to 24VDC or 10W of output power.

Its high efficiency prevents excess of heat in the installation place.

Product Specification

• Dimensions: 91mm (Length) x 18mm (Width) x (Diameter) 55.5mm
• Input: 90-264VAC
• Output Power: 10W
• Output Voltage: 24VDC
• Current: 0.42A
• Typical Efficiency: 80%

Product Downloads

• SPM1 Datasheet (0.1MB)
