Carlo Gavazz EM210 Energy Meter series (EM21-72D)
The Carlo Gavazzi EM210 is the world's first combined DIN-Rail and Panel mounting meter. It is a versatile energy meter that can be used on all types of supply (1-2-3 phase).
- Energy meter
- Self power supply
- Application adaptable display and programming procedure (Easyprog function)
- Easy connections management
- Detachable display
- Multi-use housing: for both DIN-rail and panel mounting applications
Product Details
Three-phase energy meter with removable front LCD display unit. The same unit can be used either as a DIN-rail mounting or a panel mounting energy meter. This general purpose Three-phase Energy meter is suitable for both Active and Reactive energy metering for cost allocation but also for main Electrical parameter measurement and re-transmission (transducer function).
Housing for DIN-rail mounting with IP50 (front) protection degree. Current measurements carried out by means of external current transformers and voltage measurements carried out either by means of direct connection or by means of potential transformers.
The EM210-72D is provided, as standard, with a Pulsating output for Active Energy re-transmission. In addition a 2-wire RS485 communication port is available as an option.
EM210 model types (Superseded EM21-72D):

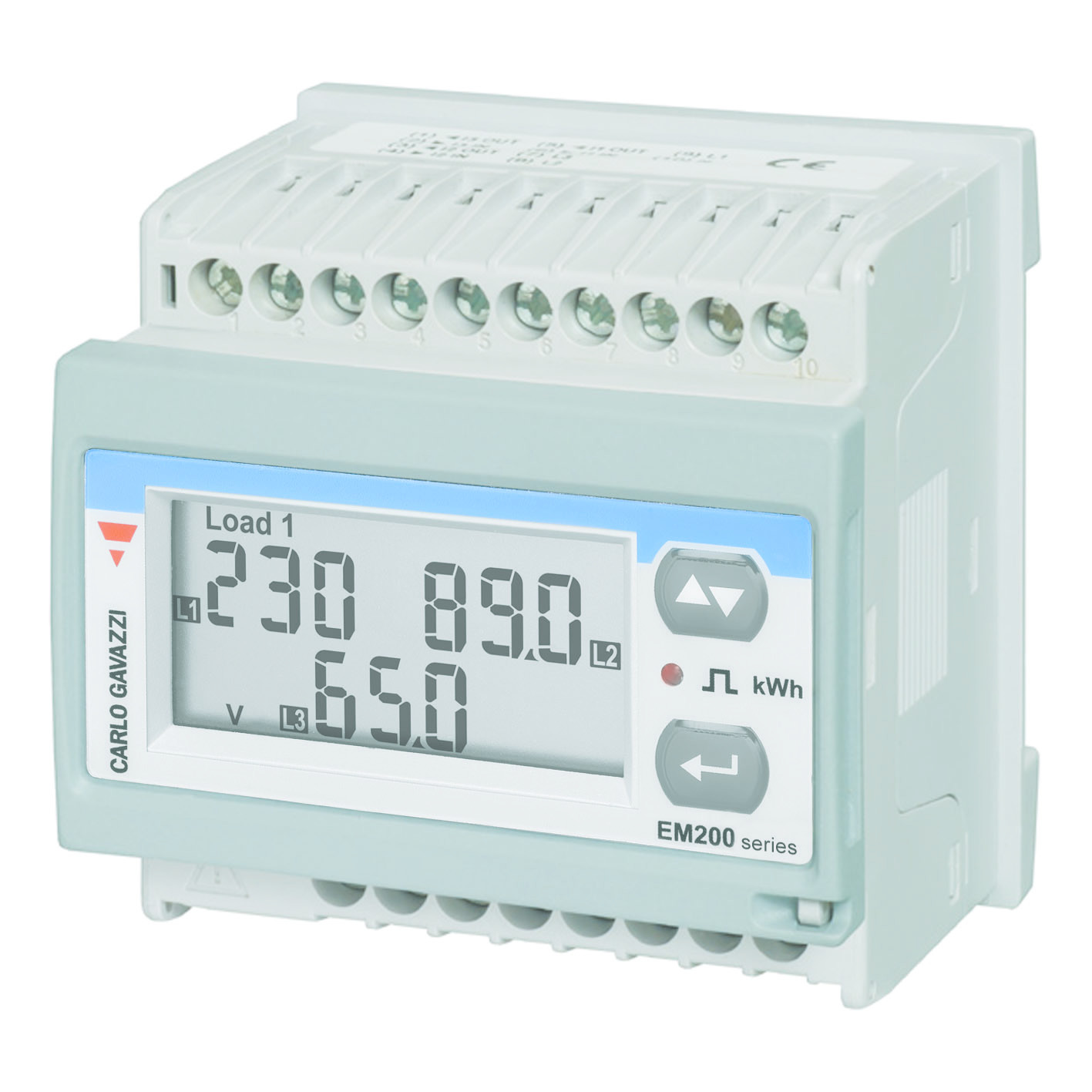

- Carlo Gavazzi EM210-72D DIN Rail MID Certified Meter with Pulse Output (EM210DINAV53HOXPFBP)
- Carlo Gavazzi EM210-72D DIN Rail MID Certified Meter with Pulse Output and Modbus (EM210DINAV53HOSPFBP)

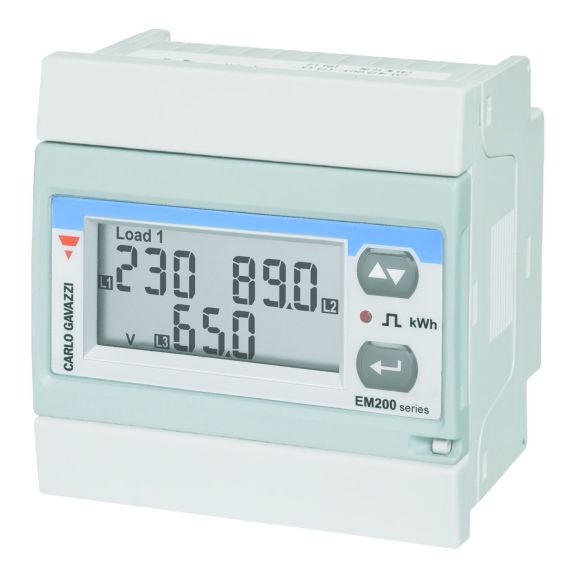

- Carlo Gavazzi EM210-72P Panel mount MID Certified Meter with Pulse Output (EM210DINAV53HOXPFBP)
- Carlo Gavazzi EM210-72P Panel mount MID Certified Meter with Pulse Output and Modbus (EM210DINAV53HOSPFBP)
- Carlo Gavazzi EM210-72D Panel or DIN Rail Meter with Pulse Output (EM210DINAV53XOXX)
- Carlo Gavazzi EM210-72D Panel or DIN Rail Meter with Pulse and Modbus output (EM210DINAV53X0SX)
Product Specification
- Class B (kWh) according to EN50470-3
- Class 1 (kWh) according to EN62053-21
- Class 2 (kvarh) according to EN62053-23
- Accuracy ±0.5 RDG (current/voltage)
- Energy meter
- Instantaneous variables readout: 3 DGT
- Energies readout: 6+1 DGT
- System variables: W, var, PF, Hz, Phase-sequence.
- Single phase variables: VLL, VLN, A, PF, THD (A,V up to 15th harmonic)
- Energy measurements: total kWh and kvarh
- TRMS measurements of distorted sine waves (voltages/currents)
- Self power supply
- Dimensions: 4-DIN modules and 72x72mm
- Protection degree (front): IP50
- Application adaptable display and programming procedure (Easyprog function)
- Easy connections management
- Detachable display
- Multi-use housing: for both DIN-rail and panel mounting applications
