Bracket Mount 2G/3G/4G Antenna SMA or FME

Product Details

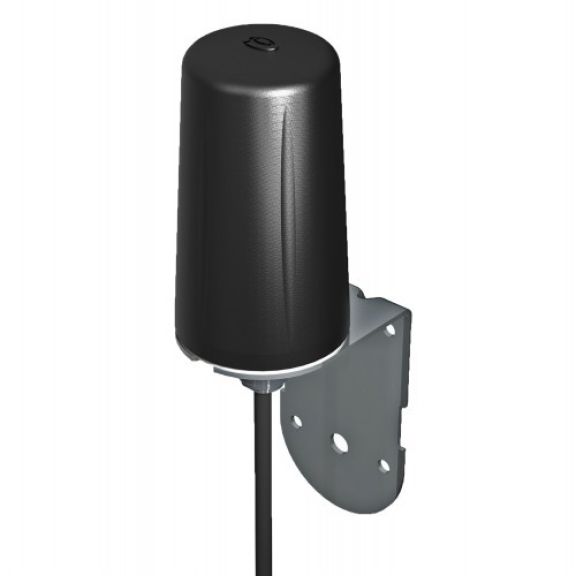

The Oscar 1 is designed for open-air use to improve cellular signal strength reception and transmission. Its high quality monopole design provides a peak gain of 3.5dBi within its operational frequencies for improved site communication.

This antenna is installed with no difficulty using a couple of screws to secure its in-built L bracket to the best position for optimum signal transmission.

The product is supplied with 5 meters of RG58 cable to allow routing and maximum altitude to best optimise site communications. As standard, cables are terminated with either an SMA male or FME female connector type.

Product Specification

Electrical Specifications

• Temperature Range: -40 to +80?C
• Impedance: 50 ohm
• Gain: 2- 3.15dB
• VSWR: <2.1
• Polarization: Vertical
• Radiating Element: Monopole

Operating Frequencies

• 850, 900, 1800, 1900MHz (Quad Band GSM/GPRS)
• 2.1GHz (3G)
• 868, 915MHz (ISM)Hz

Dimensions

• Length: 400mm
• Width: 40mm
• Height: 170mm

Mounting Specifications

• Cable: RG58
• Mounting Method: Bracket Mount

Product Downloads

• B4BE Product Datasheet (0.68MB)
