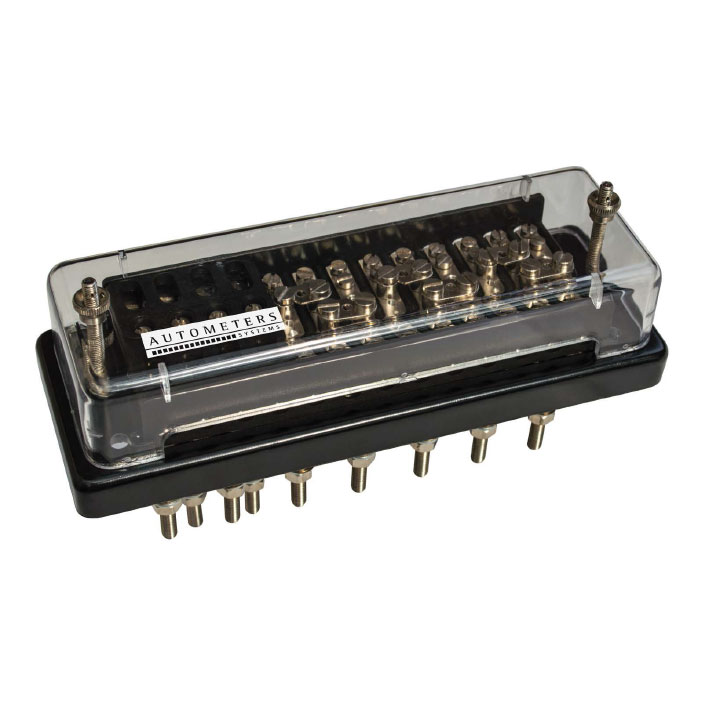

ATB 230010 meter Terminal/Test Block (Back Connected)
- Versatile terminal arrangement
- 4 fully shrouded Voltage terminals
- 3 sets of three terminals for current connections
- Teminal cover with independent seal position
- High quality nickel plated brass terminals
- Reversible insulation barriers
Product Details
The ATB 23010 is a back connected current and Voltage test terminal block with 13 separate terminals. There are 3 sets of current terminals; each set consists of three individual insulated terminals which can be linked across enabling a shorting facility across the phase and 4 separately insulated voltage terminals.
The ATB 23010 is manufactured with black Bakelite back and a clear polycarbonate cover, all screws and links are nickel plated brass. The terminal connections at the back are all M5.
Dimensions - W: 220 x H: 80 x D 70 mm (The insulated terminals extending from the back are 80 mm)
