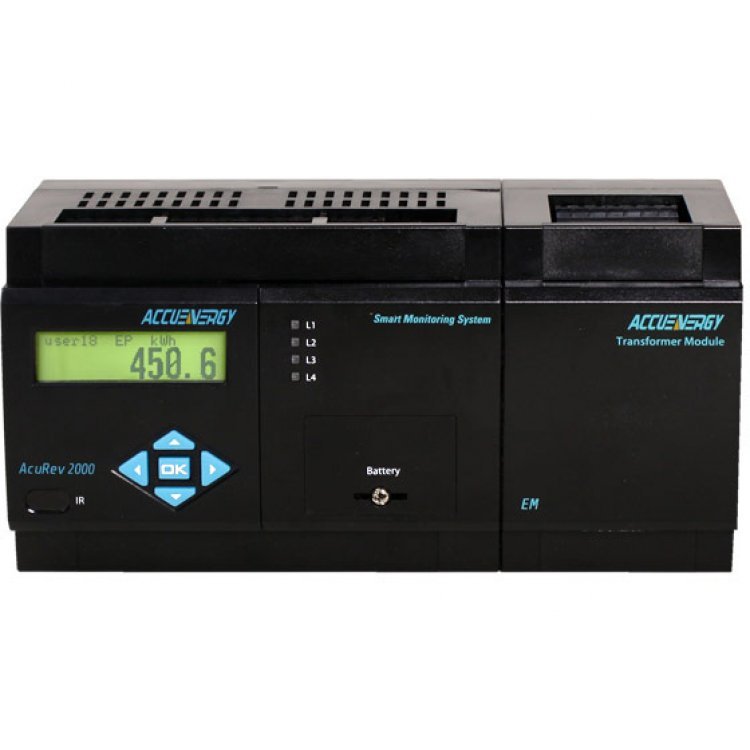

Accuenergy AcuRev2000 Series Multi-Circuit Modular Power Energy Meter
- Up to 18 Circuits - 2EM Module
- Standards: UL approved, CE Marked, 5 year warranty, ANSI
- 0.333mV CT input - No shorting-block require for installation
- Large LCD display screen
- Power Quality Analysis: Voltage & Current THD, Individual harmonics, crest factor, K factor, voltage and current unbalance
- Over & Under Limit Alarming: Pre-set limits for alarming parameters activated via relay output ports. Time stamps stored in the memory
- Compact Design and DIN-Rail mountable
- Multiple I/O options: 2DI+2DO, 2DI+2AO (mA), 2DI+2DO and 2DI+2RO
- Communication options: Modbus RTU. Modbus TCP/IP (Ethernet) and WiFi
Product Details
The AcuRev2000 is next generation of modular multi-circuit monitoring with Modbus, WiFi and Modbus TCP/IP communications available! Real-time measurement, total energy consumption and power quality can be recorded in one unit for up to 18 single phase circuits (6 Three Phase)
Dimensions:
- Base unit: 140x105.4x77.7mm
- EM Module: 67x105.4x77.7mm
- DM Module: 153x105.4x77.7mm
- External display Module: 72x72x26.5mm

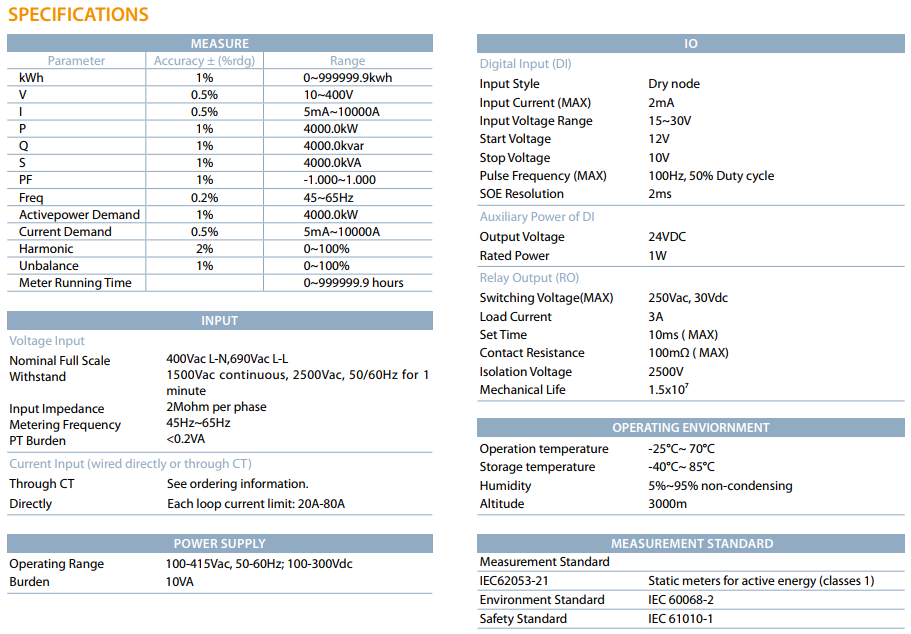

Product Specification
