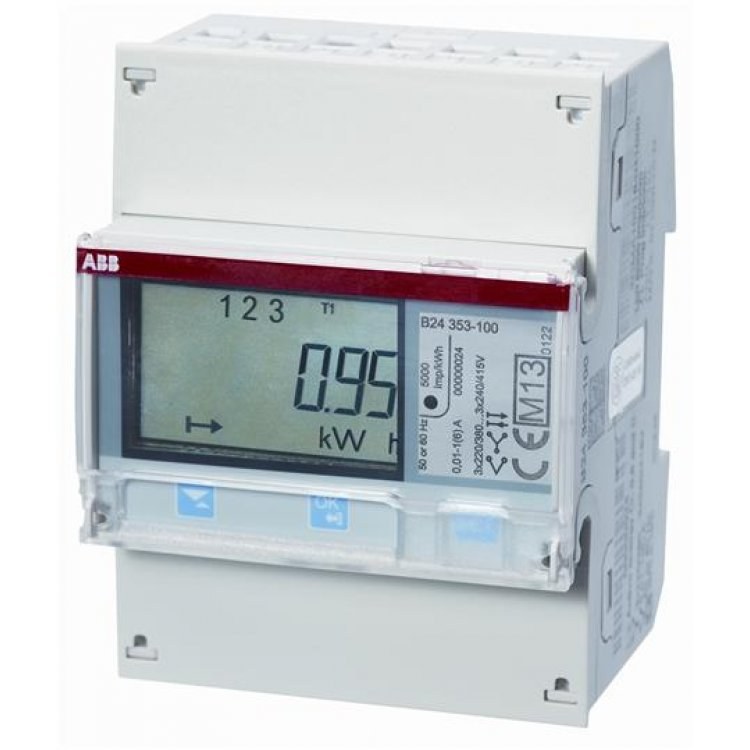

ABB B24 Three Phase 5A CT Connected Meter Series
- Connection: 5A Current Transformer Connected
- MID approved
- Dimensions: 4 DIN Module
- Accuracy Class: 1
- Electrical parameters: V, I, P and PF
- Rated Voltage P-N: 3x220 / 3x240
- Rated Voltage P-P:3x380 / 3x415V
- Standards: IEC 62052-11, IEC 62053-21, EN 50470-1, EN50470-3
- Sub function: Steel
Product Details
ABB's B24 Three Phase 5A Current Transformer Connected Meter Series provides an excellent billing solution for numerous applications.
ABB B24 Series Models:
Steel (Class)
- B24 111-100 (Pulse output) - 2CMA100177R1000
- B24 112-100 (Modbus RS485) - 2CMA100178R1000
- B24 113-100 (M-Bus) - 2CMA100179R1000
Bronze (Class)
- B24 212-100 (Import/Export + Modbus RS485) - 2CMA100180R1000
Sliver (Class)
- B24 351-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) - 2CMA100182R1000
- B24 352-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) + Modbus RS485 - 2CMA100183R1000
- B24 353-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) + MBus - 2CMA100184R1000
Product Specification
- Accuracy: Class 1
- Pulse Indicator frequency(LED): 5000 imp/kWh
- Pulse Indicator Length (LED): 40ms
- Terminal Wire Area: 0.5 -10mm2
- Current Outputs: 2-100mA
- Current Voltage: 5 -240V AC/DC. For meters with only 1 output 5 - 40VDC
- Input Voltage: 0 - 240V AC/DC
- Input Pulse Length: 30ms
- Voltage: 3 x 230/400V
- Base Current: 5
- Max Current: 6A
- Dimensions: Width (70mm), Height (97mm) and Depth (65mm)
- DIN-Modules: 4 Modules
