ABB B21 Single Phase 65A Meter Series

Product Details

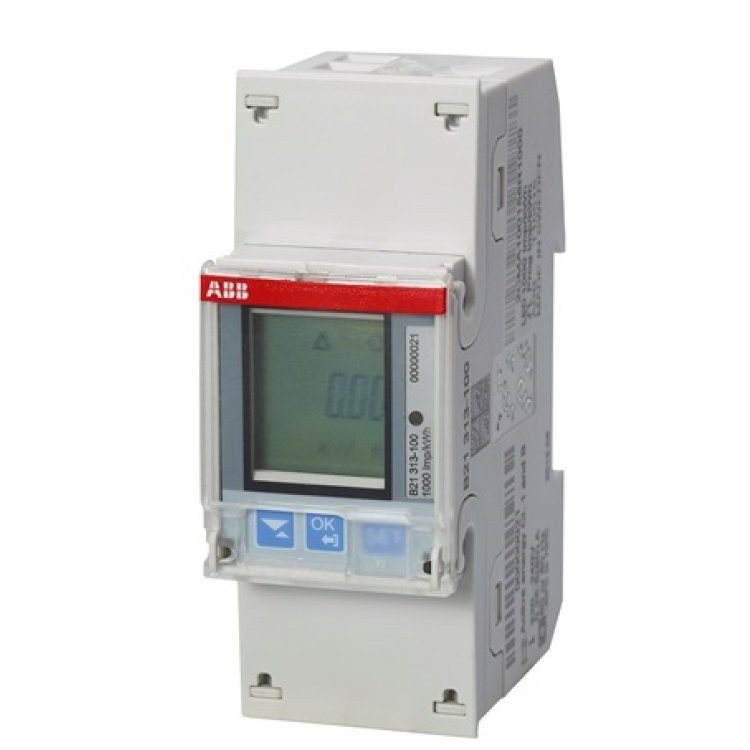

The B21 Series is a Single phase Direct connected meter for up to 65 A. The B21 measures active energy with accuracy class B (Cl.1). The low rated or base currents of the meter ensure high dynamic performance with superior accuracy even at low currents.

Navigation of the meter is easily done via the push-buttons below the display. The exceptional low power consumption of the meter, less than 0.9 VA, makes it economical in the long run - an important feature especially for large meter populations.

B21 Series Models:

Steel (Class)

• B21 111-100 (Pulse output) - 2CMA100149R1000
• B21 112-100 (Modbus RS485) - 2CMA100150R1000
• B21 113-100 (M-Bus) - 2CMA100151R1000

Bronze (Class)

• B21 212-100 (Import/Export + Modbus RS485) - 2CMA100152R1000

Sliver (Class)

• B21 311-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) - 2CMA100154R100
• B21 312-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + Modbus RS485) -  2CMA100155R100
• B21 313-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + MBus) -  2CMA100156R100

Product Specification

Inputs

• Nominal voltage - 230 V
• AC Voltage range - 220-240 VAC (-20% - +15%)
• Power dissipation voltage circuits - 0.9 VA (0,4 W)
• Total Power dissipation current circuits - 0.014 VA (0.014 W) at 230 V AC and I
• Base current Ib - 5 A

Outputs

• Current- 2-100 mA
• Voltage- 5-40 VDC
• Pulse output frequency- Programmable: 1 - 999999 imp/kWh
• Pulse length Programmable-10-990 ms
• Terminal wire area - 0.5 - 1 mm2
• Recommended tightening torque 0.25 Nm

Dimensions

• Width- 35 mm
• Height- 97 mm
• Depth- 65 mm
• 2DIN-module

Product Downloads

• ABB B21 Steel Models (0.71MB)
• ABB Full B Series Overview (0.52MB)
• B21/B23/B24 Installation Manual (0.92MB)
• ABB B21 Full User Manual (5.06MB)
