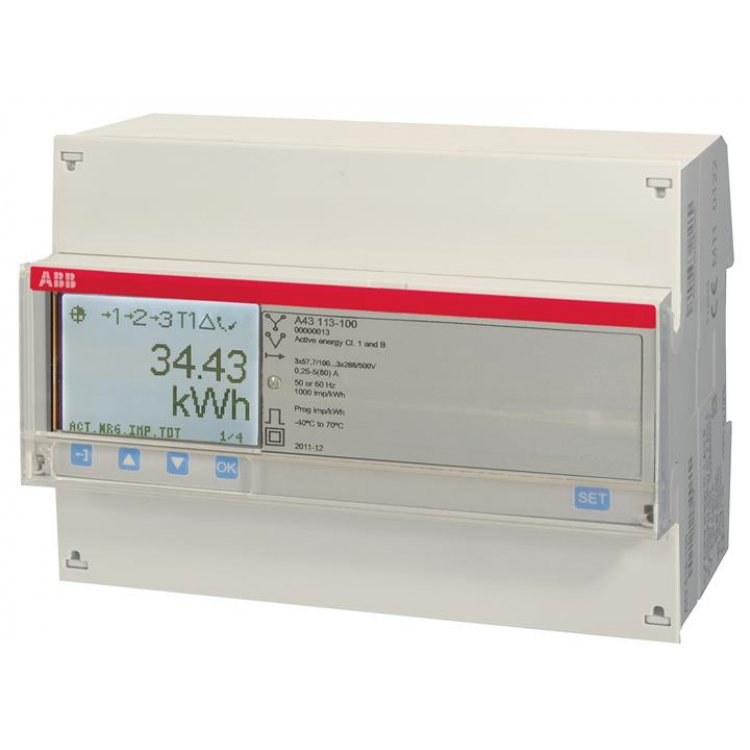

ABB A43 Three Phase 80A Direct Connected Meter Series
- Housing: 7-DIN Modules
- Accuracy: Class 1
- Current: 80A Direct Connected
- Pulse Output as standard
- Internal clock
- IR Port
Product Details
ABB A43 80A Direct Connected Electricity Meter Series with a Pulsed output as standard.
ABB A43 Series Models:
Steel (Class)
A43 111-100 (Pulse) - 2CMA170520R1000
A43 112-100 (Modbus RS485) - 2CMA100244R1000
A43 113-100 (M-Bus) - 2CMA170521R1000
Bronze (Class)
A43 211-100 (Import/Export + Pulse) - 2CMA100012R1000
A43 212-100 (Import/Export + Modbus RS485) - 2CMA170522R1000
A43 213-100 (Import/Export + M-Bus) - 2CMA170523R1000
Sliver (Class)
A43 311-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) - 2CMA170524R1000
A43 312-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + Modbus RS485) - 2CMA170525R1000
A43 313-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + M-Bus) - 2CMA170526R1000
Gold (Class)
A43 412-100 (Import/Export + Multi-Tariff/Internal Clock + 2 Pulse I/O + Min/Max values + Modbus RS485) - 2CMA170528R1000
A43 413-100 (Import/Export + Multi-Tariff/Internal Clock + 2 Pulse I/O + Min/Max values + M-Bus RS485) - 2CMA170529R1000
Platinum (Class)
A43 511-100 (Import/Export + Multi-Tariff/Internal Clock + 4 Pulse I/O + Min/Max values + THD) - 2CMA100143R1000
A43 512-100 (Import/Export + Multi-Tariff/Internal Clock + 4 Pulse I/O + Min/Max values + THD + Modbus RS485) - 2CMA170531R1000
A43 513-100 (Import/Export + Multi-Tariff/Internal Clock+ 4 Pulse I/O + Min/Max values + THD + M-Bus RS485) - 2CMA170532R1000
Product Specification
Voltage/Current inputs
- Nominal Voltage: 230VAC
- Voltage Range: 57-288 VAC(-20% + 15%)
- Power dissipation voltage circuits- 0.8 VA
- Base current: 5A
- Transitional current: 0.5A
- Max current: 80A
- Starting current: <20mA
- Terminal Wide Area: 1 - 25mm2
General
- Accuracy Class:B (Cl 1) and reactive Cl 2
- Active energy: 1%
- Current: 2-100mA
- Voltage: 5-240V AC/DC for meters with 1 output 5-40VDC
- Dimensions: 123mm Width, 97mm Height and 65mm Depth
- DIN- Module: 7
Outputs
- Current: 2 - 100mA
- Voltage: 5 - 240V AC/DC. For meters with only 1 output, 5 - 40V DC
- Pulse output Frequency: Programmable from 1 - 999999 imp/kWh
- Pulse Length: Programmable from 10 - 990ms
- Terminal wire area: 0.5 - 1mm2
Inputs
- Voltage: 0 - 240V AC/DC
- OFF: 0 - 12V AC/DC
- ON: 57 - 240V AC/24 - 240V DC
- Min. pulse length: 30ms
- Terminal wire area: 0.5 - 10mm2
