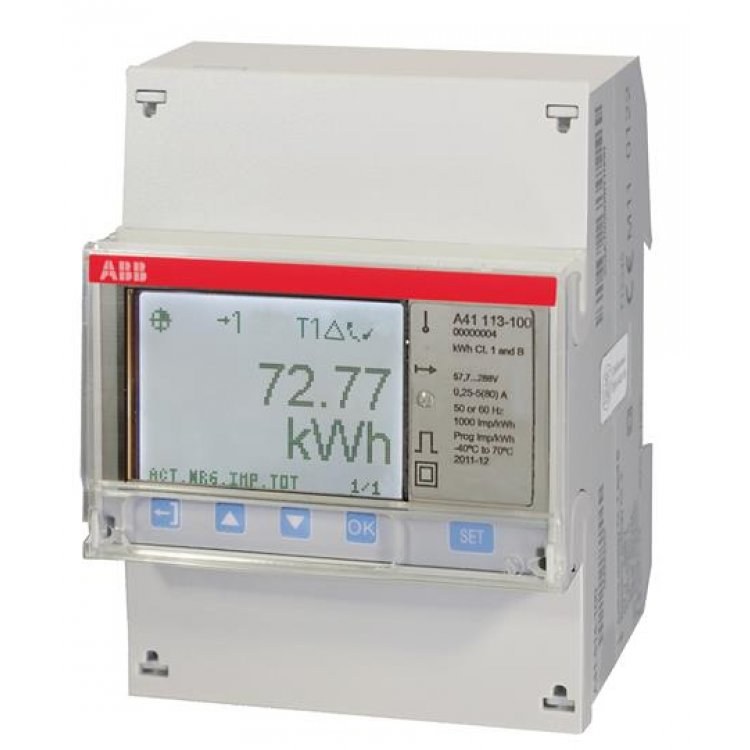

ABB A41 Single Phase 80A Direct Connected Meter Series
- Housing: 4-DIN Modules
- Accuracy: Class 1
- Current: 80A Direct Connected
- Pulse Output as standard
- Internal clock
- IR Port
Product Details
ABB A41 80A Direct Connected Electricity Meter Series with a Pulsed output as standard.
ABB A41 Series Models:
Steel (Class)
A41 111-100 (Pulse) - 2CMA170554R1000
A41 112-100 (Modbus RS485) - 2CMA170500R1000
A41 113-100 (M-Bus) - 2CMA100240R1000
Bronze (Class)
A41 212-100 (Import/Export + Modbus RS485) - 2CMA170501R1000
Sliver (Class)
A41 311-100 (Import/Export + Multi-Tariff + 2 Pulse I/O) - 2CMA170502R1000
A41 312-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + Modbus RS485) - 2CMA170503R1000
A41 313-100 (Import/Export + Multi-Tariff + 2 Pulse I/O + M-Bus) - 2CMA170504R1000
Gold (Class)
A41 412-100 (Import/Export + Multi-Tariff/Internal Clock + 2 Pulse I/O + Min/Max values + Modbus RS485) - 2CMA170505R1000
A41 413-100 (Import/Export + Multi-Tariff/Internal Clock + 2 Pulse I/O + Min/Max values + M-Bus RS485) - 2CMA170506R1000
Platinum (Class)
A41 512-100 (Import/Export + Multi-Tariff/Internal Clock + 4 Pulse I/O + Min/Max values + THD + Modbus RS485) - 2CMA170507R1000
A41 513-100 (Import/Export + Multi-Tariff/Internal Clock+ 4 Pulse I/O + Min/Max values + THD + M-Bus RS485) - 2CMA170508R1000
Product Specification
Voltage/Current inputs
- Nominal Voltage: 230VAC
- Voltage Range: 57-288 VAC(-20% + 15%)
- Power dissipation voltage circuits- 0.8 VA
- Base current: 5A
- Transitional current: 0.5A
- Max current: 80A
- Starting current: <20mA
- Terminal Wide Area: 1 - 25mm2
General
- Accuracy Class:B (Cl 1) and reactive Cl 2
- Active energy: 1%
- Current: 2-100mA
- Voltage: 5-240V AC/DC for meters with 1 output 5-40VDC
- Dimensions: 70mm Width, 97mm Height and 65mm Depth
- DIN- Module: 4
Outputs
- Current: 2 - 100mA
- Voltage: 5 - 240V AC/DC. For meters with only 1 output, 5 - 40V DC
- Pulse output Frequency: Programmable from 1 - 999999 imp/kWh
- Pulse Length: Programmable from 10 - 990ms
- Terminal wire area: 0.5 - 1mm2
Inputs
- Voltage: 0 - 240V AC/DC
- OFF: 0 - 12V AC/DC
- ON: 57 - 240V AC/24 - 240V DC
- Min. pulse length: 30ms
- Terminal wire area: 0.5 - 1mm2
